CoreStar TrackDrive-200 Probe Pusher

TD-200 pusher

TrackDRIVE-200™ eddy current probe pusher is designed to reduce probe slippage by dramatically increasing the contact area between the probe shaft and the pusher. The track design also simplifies the mechanical design of the tester yielding the additional benefits of few moving parts and reduced weight.

The takeup spool uses a torque motor instead of a complicated clutch/chain drive. This has many benefits. There is no wear surface and nothing to adjust. Also, because there is no chain, the pusher can now be broken down into three separate sections for ease in transport.

An encoder rides on the probe shaft to allow for precise positioning without slippage. This is integrated with the EddyVision automatic acquisition software.

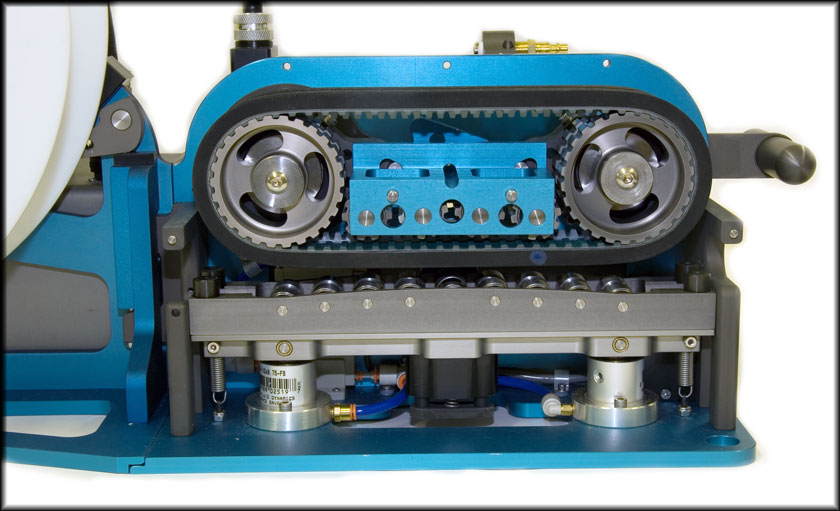

TrackDrive-200 Detail

System Specifications
Power 100 VAC 50/60 Hz
Environmental 32 to 113°F (0 to 45°C) operating range

-4 to 158°F (-20 to 70°C) storage
Interface Single 10/100 Ethernet connection
Speed Range 0.1 in/sec to 100 in/sec
Mechanical Main Drive:
  • 13”L x 14”W x 8”H (33.0 x 35.6 x 20.3 cm)
  • 46.0 lbs. (20.9 kg)

Take-up Drive:
  • 12”L x 14”W x 13”H (30.5 x 35.6 x 33.0 cm)
  • 27 lbs. (12.3 kg)

OMNI-200 Spool:
  • 12.5” Diameter x 4” W (31.8 x 10.2 cm)
  • 6.0 lbs. (2.7 kg)

Drive Control Pod:
  • 22”L x 7.5”W x 4”H (55.9 x 19.1 x 10.2 cm)
  • 13.0 lbs. (5.9 kg)

Standard System Contents:

TrackDrive-200 Pusher Models
TD-200 The TrackDRIVE-200 uses a servomotor that gives it a speed range from 0.1 in/sec to 100 in/sec.
TD-200-ISR The optional internal slip ring connects the probe to the test instrument without the need for a sacrificial cable. This option is internal to the probe pusher and not a bolt on device
TrackDrive-200 Replacement Parts

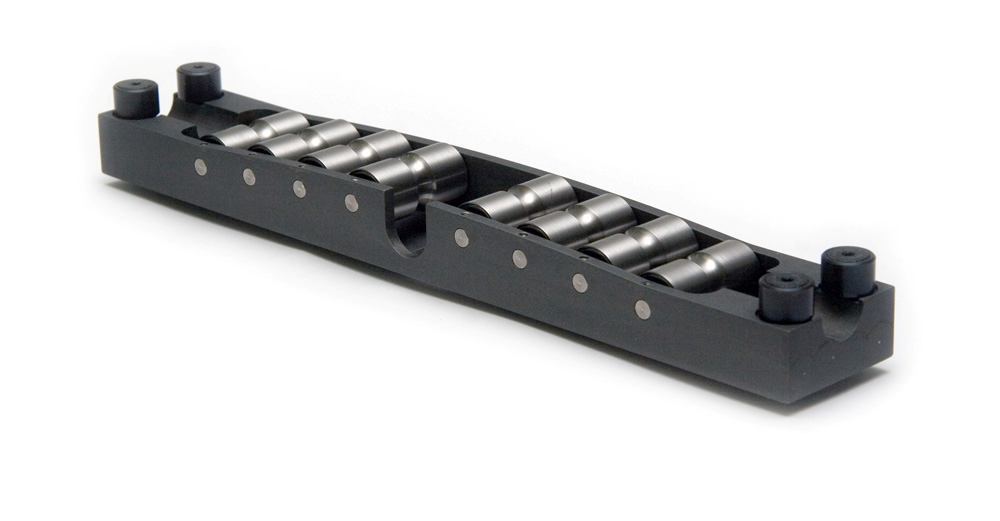

TD-RP-5/16 5/16” Roller plate assembly for TD-200 probe pusher No Picture
TD-RP-3/8 3/8” Roller plate assembly for TD-200 probe pusher No Picture

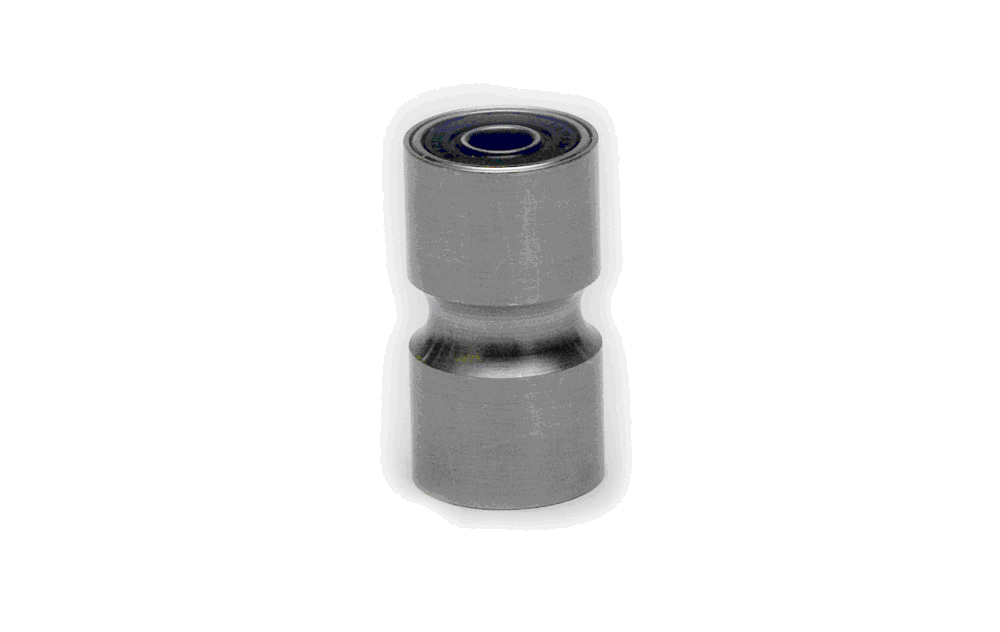

TD-R-3/8 Roller and Internal Bearings for a Shaft Size of 3/8” No Picture

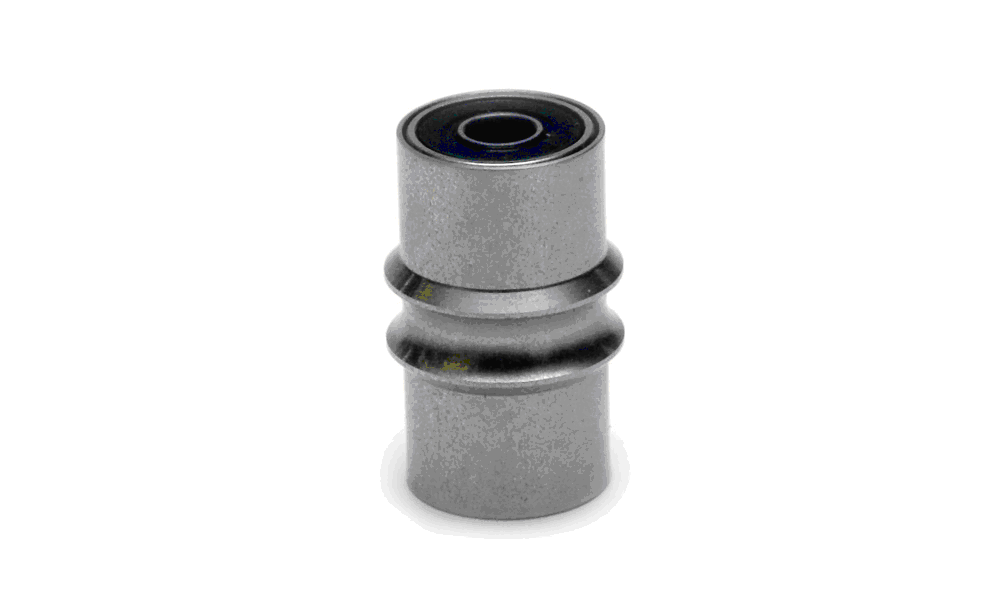

TD-R-5/16 Roller and Internal Bearings for a Shaft Size of 5/16” No Picture
TD-SP Plastic Takeup Spool No Picture
TD-SP-CP BOP Spool Cover with Latches No Picture

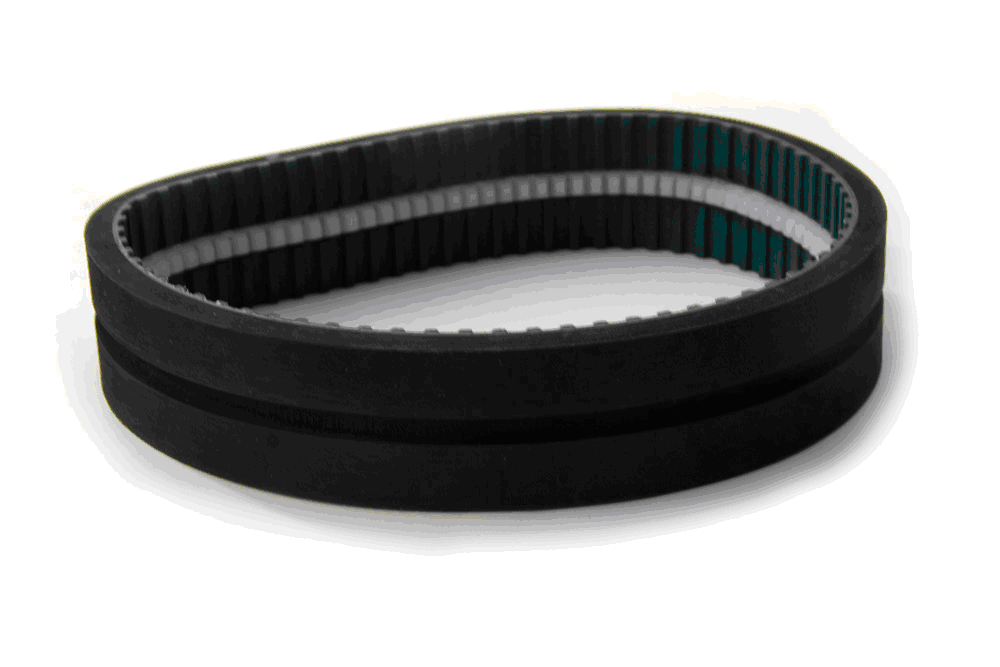

TD-BLT-V Replacement V Groove Belt No Picture
TD-BLT-R Replacement Round Groove Belt No Picture

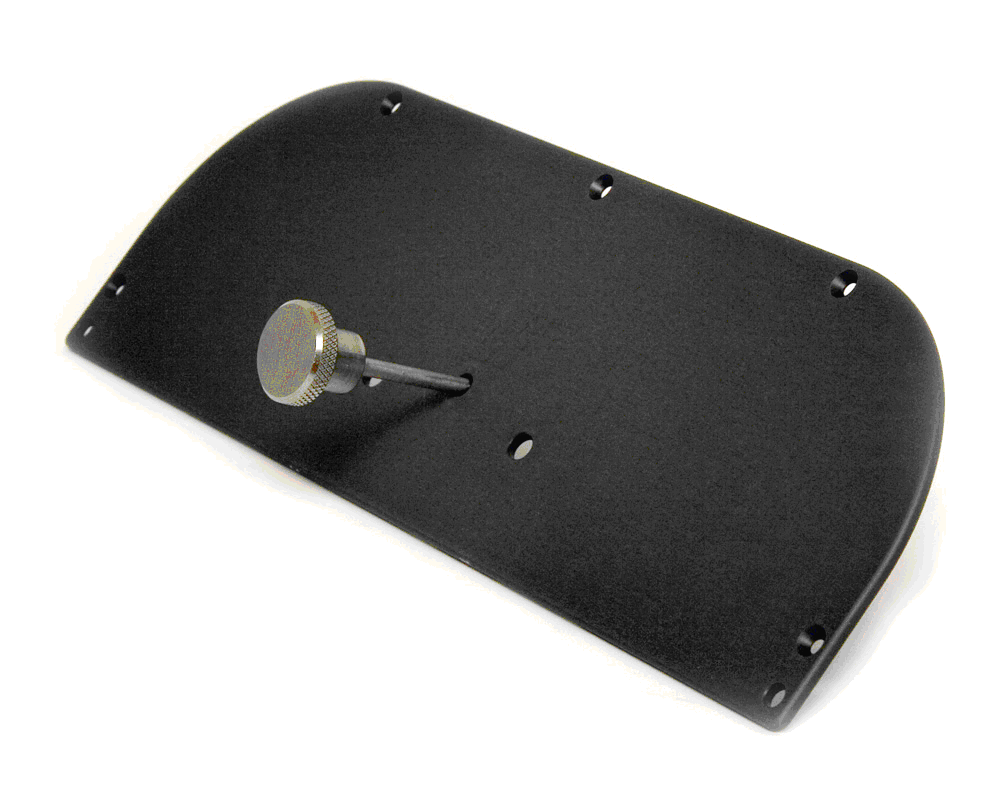

TD-BLT-FP Belt Face Plate and Captive Screw No Picture
TD-BLT-CVR Molded Belt Cover Plate No Picture

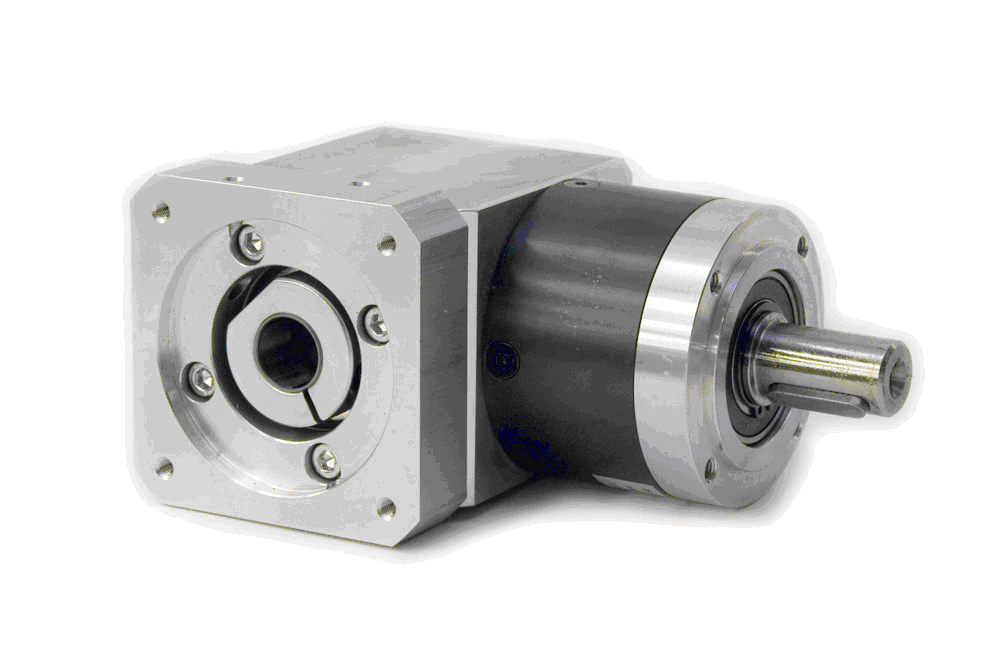

TD-M-GB Gear Box for Main Drive Motor No Picture

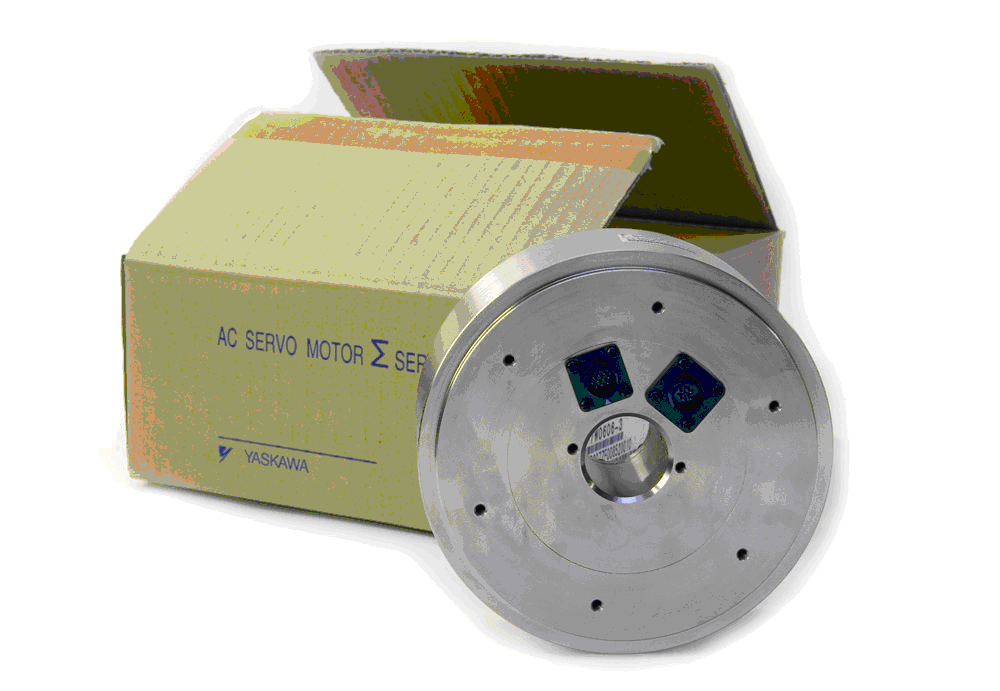

TD-M-TQ Torque Motor No Picture

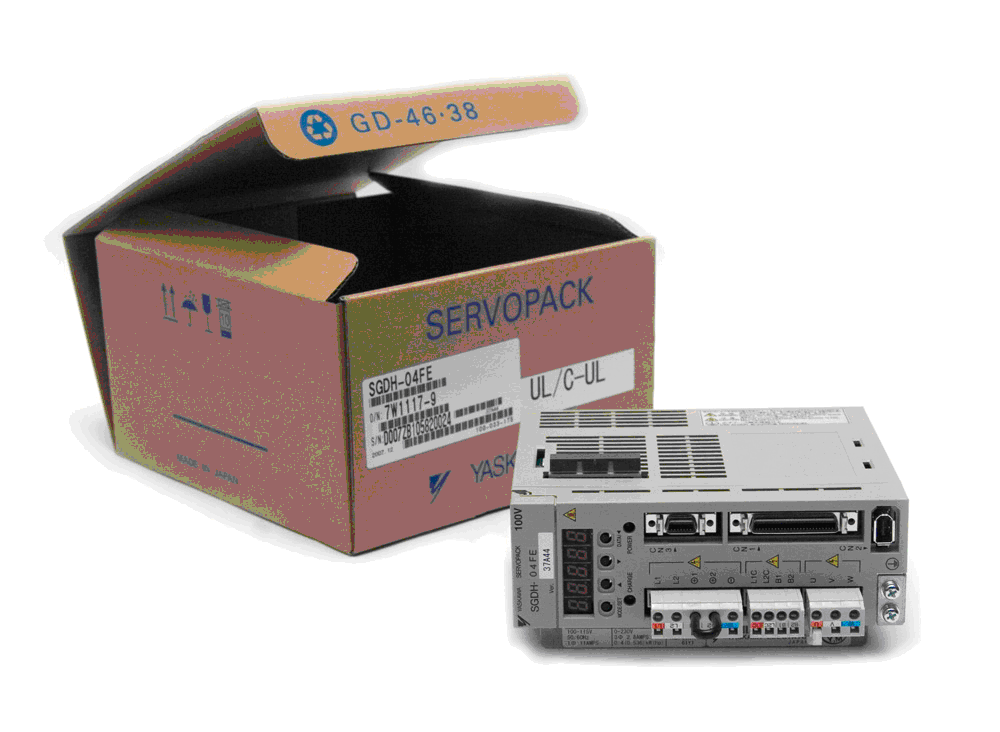

TD-M-TQMC Torque Motor Controller No Picture
TD-A-R Air Regulator No Picture
TD-A-C Air Cylinder No Picture

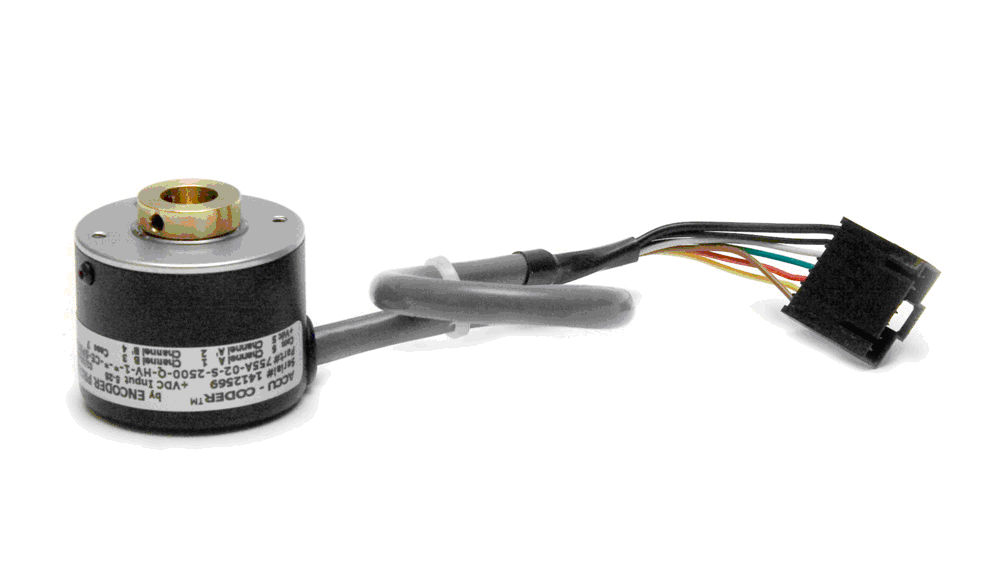

TD-SENC Shaft Encoder No Picture

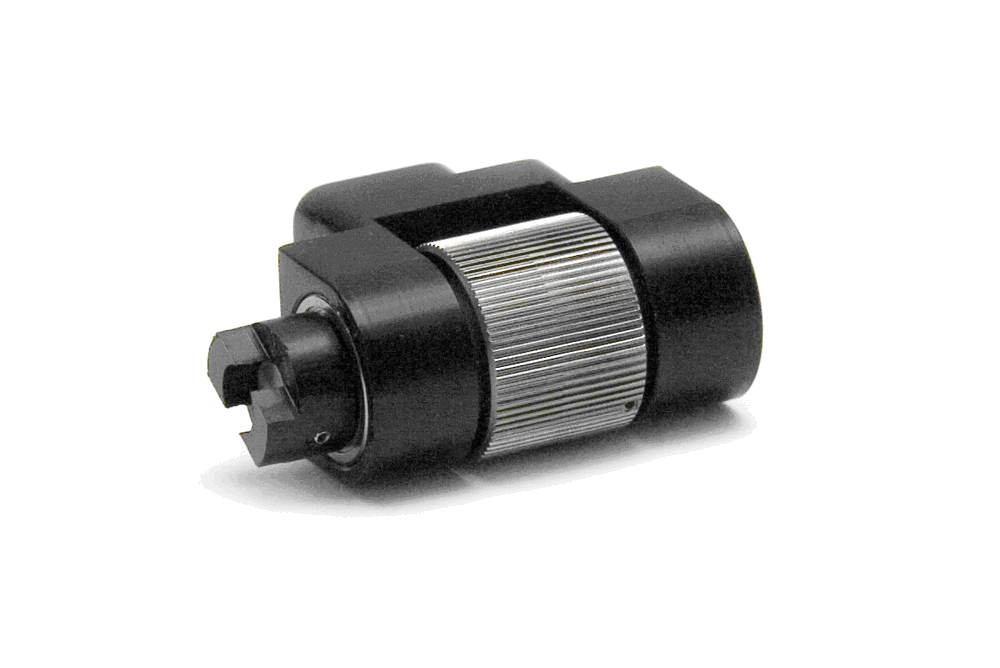

TD-RENC Roller for Shaft Encoder No Picture
