Metal Quick Connect Conduit
| PART# |
DESCRIPTION |
PICTURE |
| CND-2M100,125 |
Two foot section of metal conduit includes connectors. |
 |
| CND-4M100,125 |
Four foot section of metal conduit includes connectors |
|
| CND-6M100,125 |
Six foot section of metal conduit includes connectors. |
|
| CND-8M100,125 |
Eight foot section of metal conduit includes connectors. |
|
| CND-FM100 |
Female Conduit Connector, 1.0in ID |
 |
| CND-FM125 |
Female Conduit Connector, 1.25in ID |
|
| CND-MM100 |
Male Conduit Connector, 1.0in (2.54cm) ID |
 |
| CND-MM125 |
Male Conduit Connector, 1.25in (3.18cm) ID |
|
| CND-PSHAD-200 |
Pusher adapter for attaching conduit to the TD-200 probe pusher |
 |
Plastic Quick Connect Conduit
| PART# |
DESCRIPTION |
PICTURE |
| CND-2P100,125 |
Two foot section of plastic braided conduit includes connectors. |
 |
| CND-4P100,125 |
Four foot section of plastic braided conduit includes connectors. |
|
| CND-6P100,125 |
Six foot section of plastic braided conduit includes connectors. |
|
| CND-8P100,125 |
Eight foot section of plastic braided conduit includes connectors. |
|

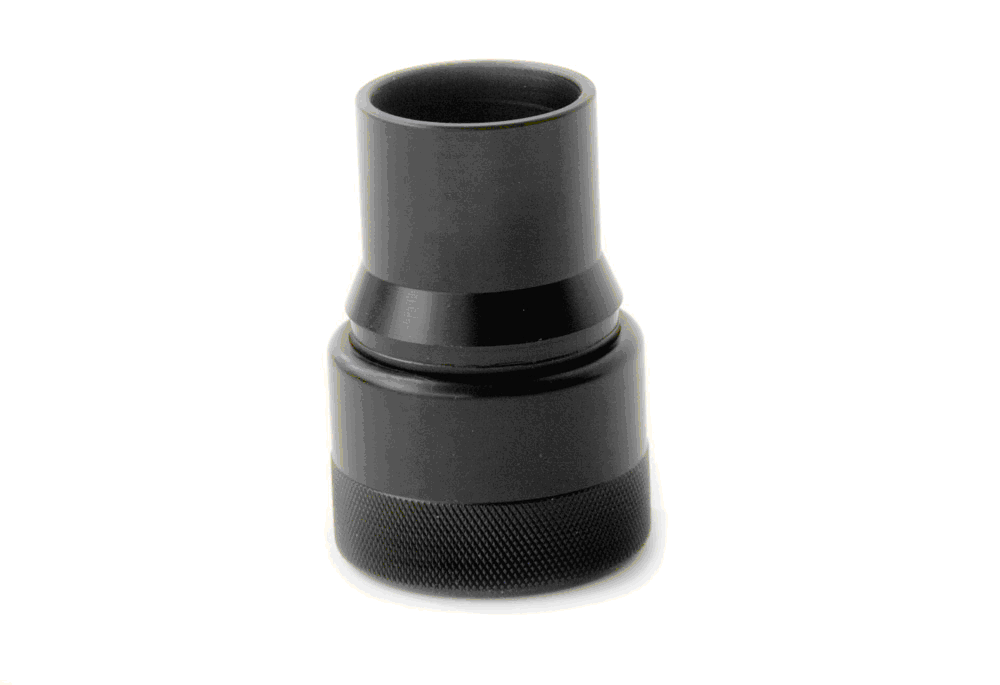

| CND-FP100 |
Female Conduit Connector, 1.0in ID |
 |
| CND-FP125 |
Female Conduit Connector, 1.25in ID |
|
| CND-MP100 |
Male Conduit Connector, 1.0in ID |
 |
| CND-MP125 |
Male Conduit Connector, 1.25in ID |
|
| CND-PSHAD-200 |
Pusher adapter for attaching conduit to the TD-200 probe pusher |
|
Adapters
| PART# |
DESCRIPTION |
| ADAPTER-1 |
4 Pin ET Adapter for use with RDTECH TC5700 (AD-57-ET) |
| ADAPTER-2 |
3 & 6 Pin RFT Adapter for use with RDTECH TC5700 (AD-57-RFT) |
| ADAPTER-3 |
3 & 6 Pin RFT Adapter for use with RDTECH MS5800 (AD-58-RFT) |
| ADAPTER-4 |
Switchable Dual Exciter 5 Pin Female to 3 Pin Male (AD-RFT-5-3) |
| ADAPTER-5 |
Switchable Dual Exciter Adapter Box - 5 Pin Female to 3 Pin Male (AD-RFT-SDE-5-3) |
| ADAPTER-6 |
MIZ-27ET 12 Pin to 4 Pin Adapter (AD-MIZ27ET-12-4) |
| ADAPTER-7 |
MIZ-27SI 12 Pin to 4 Pin Adapter (AD-MIZ27SI-12-4) |
| ADAPTER-8 |
MIZ-27SI 5 Pin to 3 Pin RFT Exciter Adapter (AD-MIZ27SI-5-3) |
| ADAPTER-9 |
Nortec 16 Pin Lemo to 4 Pin Adapter (AD-NORTEC-16-4) |
| ADAPTER-10 |
36 Pin Female to 4 Pin Male Straight Line Adapter (AD-36F-4M-ST) |
| ADAPTER-11 |
36 Pin Male to 4 Pin Female Straight Line Adapter (AD-36M-4F-ST) |
| ADAPTER-12 |
36 Pin Male to 4 Pin Female TIP Adapter (AD-36-4-TIP) |
| ADAPTER-13 |
36 Pin TIP Adapter for Zetec 10/5 RPC Motor Units (AD-36-RPC-10/5) |
| ADAPTER-14 |
Combo Probe Adapter for TIP (AD-36-36-TIP-COMBO) |
| ADAPTER-15 |
Distance Based Sampling Connector Assembly for OMNI-200 |
| ADAPTER-16 |
55 pin female to 36 pin male adapter. For use with OMNI200ET-SPT18 and VM Products Segmented Bobbin probe. (AD-36M-55F) |
| ADAPTER-17 |
55 Pin Male to 4 Pin Female TIP Adapter (AD-55-4-TIP) |
| ADAPTER-18 |
55 pin male to five 4 pin female adapter. For use with BOP 8x2 module. (AD-55M-5-4F) |
| ADAPTER-19 |
55 pin female to five 4 pin male adapter. For use with VM Products Segmented Bobbin probe. (AD-55F-5-4M) |
| ADAPTER-20 |
BOP 8x2 module to 36 pin V8 probe. (AD-55M-36F-V8) |
| ADAPTER-21 |
36 Pin Male to 3/6 Pin Female TIP RFT Adapter |
| ADAPTER-22 |
2 Encoder/1 Input for OMNI-200R |
| ADAPTER-23 |
3 & 4 6 Pin for use with MS5800 |
| ADAPTER-24 |
36 Pin Male to Three 4 Pin Female TIP Adapter |
Extension Cables
| PART# |
DESCRIPTION |
| PROBE-EXT-4-10 |
4 Pin Probe Extension Cable - 10' Long |
| PROBE-EXT-4-20 |
4 Pin Probe Extension Cable - 20' Long |
| PROBE-EXT-4-50 |
4 Pin Probe Extension Cable - 50' Long |
| PROBE-EXT-4-100 |
4 Pin Probe Extension Cable - 100' Long |
| PROBE-EXT-4-130 |
4 Pin Probe Extension Cable - 130' Long |
| PROBE-EXT-5-10 |
5 Pin Motor Unit Extension for RPC Probes - 10' Long |
| PROBE-EXT-5-50 |
5 Pin Motor Unit Extension for RPC Probes - 50' Long |
| PROBE-EXT-10-10 |
10 Pin Probe Extension for use with RPC Probes - 10' Long |
| PROBE-EXT-10-50 |
10 Pin Probe Extension for use with RPC Probes - 50' Long |
| PROBE-EXT-RFT-10 |
3 Pin/6 Pin RFT Probe Extension Cable - 10' Long |
| PROBE-EXT-RFT-20 |
3 Pin/6 Pin RFT Probe Extension Cable - 20' Long |
| PROBE-EXT-RFT-50 |
3 Pin/6 Pin RFT Probe Extension Cable - 50' Long |
| RPC-EXT-2(10,5)-10 |
5 Pin/10 Pin RPC Probe Extension Cable - 10' Long |
| RPC-EXT-2(10,5)-50 |
5 Pin/10 Pin RPC Probe Extension Cable - 50' Long |
| RPC-EXT-36-10 |
36 Pin RPC Extension Cable - 10' Long |
| RPC-EXT-36-30 |
36 Pin RPC Extension Cable - 30' Long |
| RPC-EXT-36-50 |
36 Pin RPC Extension Cable - 50' Long |
| PROBE-EXT-V8-36-30 |
36 Pin Extension for V8 Probe (8 Diff) - 30' Long |
| PROBE-EXT-V8-36-50 |
36 Pin Extension for V8 Probe (8 Diff) |
| PROBE-EXT-VM-55-20 |
55 Pin Extension for VM Products Segmented Array Probe - 20' Long |
| CAT5-100 |
100' Terminated CAT5 Ethernet Cable for use with ADAPTER-15 |
| PROBE-EXT-CSA-55-50 |
50' - 55 Pin Extension for Array Probe |
ET Cables for OMNI-100
| PART# |
DESCRIPTION |
| OMNI100ET-SPT1 |
Two 4-pin adapters for ET differential and absolute use (standard bobbin configuration) |
| OMNI100ET-SPT2 |
Four 4-pin adapters, two differential and two absolute |
| OMNI100ET-SPT3 |
Four 4-pin adapters, all four are differential |
| OMNI100ET-SPT4 |
Four 4-pin adapters, three differential, one absolute (for use with the cross-axis probe) |
| OMNI100ET-SPT5 |
Eight pin lemo connector, mates to Zetec RPC gun |
| OMNI100ET-SPT6 |
One 10-pin and one 5-pin connector. Mates Zetec RPC motor units that use a 10 pin signal connector and 5 pin motor power connector to the OMNI-100 remote unit. |
| OMNI100ET-SPT7 |
One 36-pin connector, mates Zetec RPC motor unit that uses a single 36 pin connector to provide signal and power to the OMNI-100 remote unit. (SG style motor unit) |
| OMNI100ET-SPT8 |
ET driver-pickup adapter for use with the OMNI-100. It has a 1-5 pin configuration |
| OMNI100ET-SPT9 |
One Five Pin Amphenol - 2 Diff |
